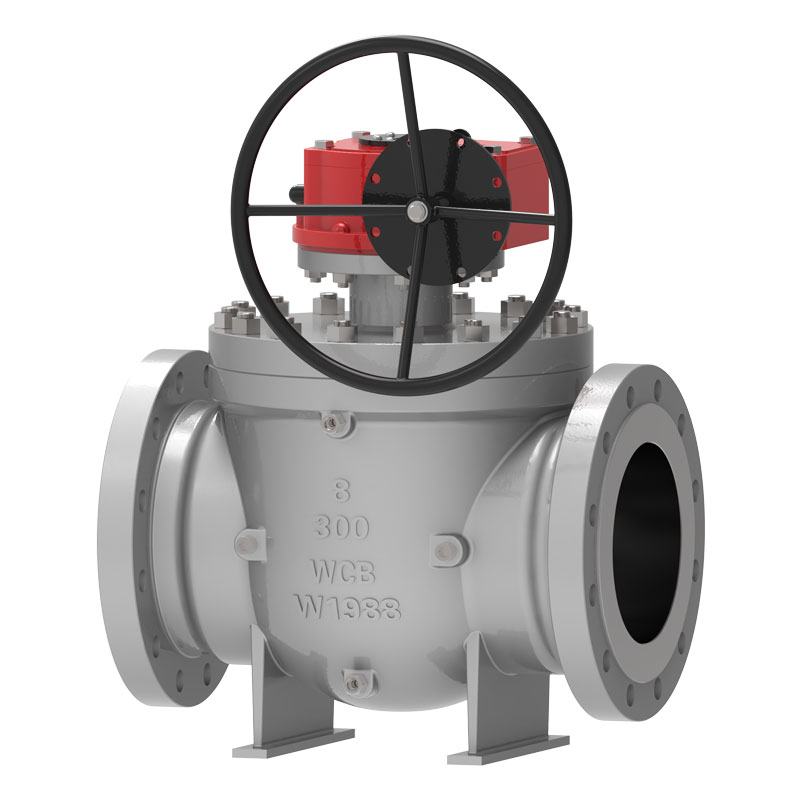

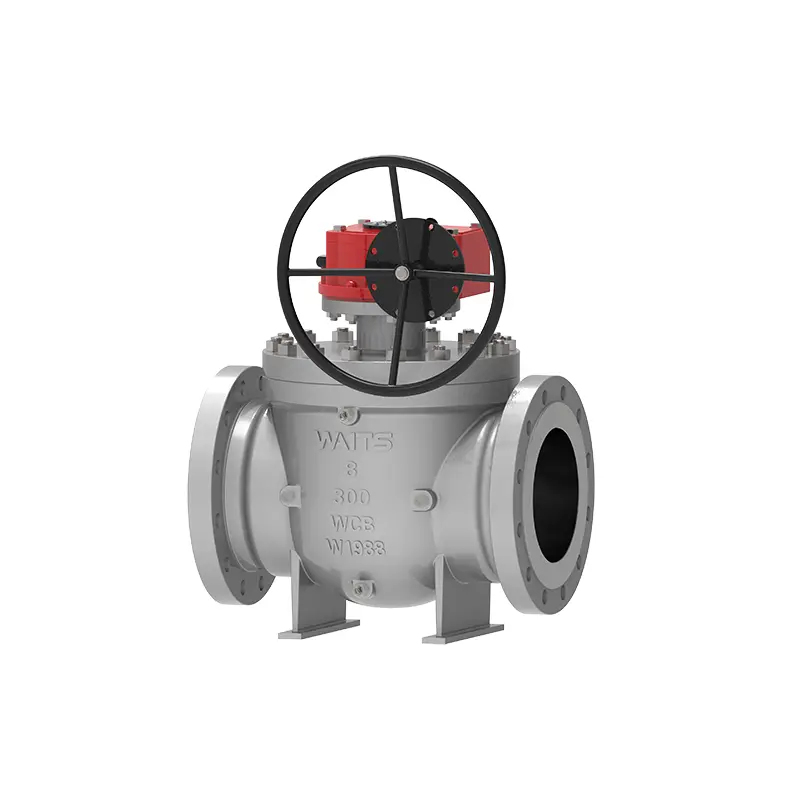

Top Entry Ball Valve

Expectat valvae magnae fabrica et amet. Completa productio eius linea producere potest summus qualitas summi pretii valvulae pilae. Haec pila valvae stricte secundum API signa designatur, producta et inspecta est. Modus incessus cum clientibus solutionibus multum praebere potest. Plus quam unam basim productionis habemus, et capacitas nostra traditio certissima est, quae novis et antiquis clientibus penitus amatur.

Mitte Inquisitionem

depictio producti

Top viscus pilae valvae maxime in pipelines et in systematibus industrialibus adhibentur. Secundum valvae pilae plenae traditae, commoda conservationis online et ultrices reduci habet. Modus operationis potest esse manualis, gearbox, pneumatica, electrica, nexus gas- liquida, nexus electro-hydraulica, etc.

Signa exsequendam

Design signa	API 608, API 6D, ASME B16.34
Signa Flange	ASME B 16.5, ASME B16.47, ASME B16.25;
Connexio modi	RF, RTJ, BW
Probatio et acceptatio	API598, API 6D,
Longitudo structuralis	API 6D, ASME B16.10
Pressura et temperatus gradus	ASME B16.34、
Ignis praesidium requisita	API6FA API607
Humilis lacus signa	ISO 15848-1, API 622
Anti- corrosio design	NACE MR 0103, NACE MR 0175

Applicationem

Magnitudo	NPS1-1/2″~ 60"DN40~DN1500
Pressura range	Class150~ MMD PN10-PN420
Temperatus range	-60*C ~ +260°C
Applicationemem range	Petroleum, industria chemica, metallurgia, lux industriae, statio potentiae, constructionis aquae urbanae copia, condiciones temperaturae laboris humiles, et fistulae diuturnae ut oleum, gas et gas naturale.
Drive mode	Turbine, pneumaticum, electricum
Valve body	Forgings：A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5, Monel; Castings：A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2
Ball	Sphere CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni60
Valvae firmamentum anulus sedes	Seat support ring： CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni55
Valvae sedes inserta	PTFE, RPTFE, Nylon, Devlon, PEEK
Valvae caulis	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Features euismod

1. Maxima differentia inter valvae pilae supremae et valvae ordinariae est quod conservari potest online sine valvae disgregationi e pipelino, quae sustentationem gratuita reducet et vitam servitii prorogat. Finis iunctae structuram adoptat et in pipelino instituitur, quae accentus pipeline non patitur et ad firmitatem signandam efficit.
2. The valve seat seal includes valve seat, valve seat ring and other components. The valve seat ring can float independently in the axial position. Through the preload spring, the valve seat can be sealed under zero pressure and low pressure conditions. This design is used to achieve the ability to close the valve under working pressure and high pressure conditions. On the outside of the valve seat ring, we insert O-rings and elastic rings to ensure the seal between the valve seat and the valve body. When a fire occurs at the site of the use of expanded graphite, the sealing performance can also be maintained. 3. When the valve seat and valve stem seal leak due to damage, the sealing grease injected by the grease injection valve can achieve the effect of emergency sealing. When the valve is in normal working condition, the grease can be injected through the grease injection valve to lubricate the valve stem and the ball surface, making the opening and closing more flexible.
4. Pro valvis sub terra constitutis, valvae truncus pro necessitate extendi potest, et magnitudo secundum exigentiam clientium potest esse. Omnes fistulae purgamentorum, exhaurit tibias et injectiones subitis adipes machinae prolongantur, et aliae fistulae affinis prope valvae partem productam sunt. Valvae purgamentorum, valvae ventrae et valvae iniectio adipe coniunguntur solo ad institutionem, ut ad faciliorem conservationem valvae principalis.
5. Caules valvae superioris et inferioris anti-staticae secundum signa API6D et ISO17292 dispositae sunt.
6. Cum unius pistonis plectrum sedes flumine adhibetur et duplex pistonis valvae sedes amni adhibetur, plectrum duplicem habet functionem interclusionem et media ab adverso et amni simul abscindere potest. Cum massa in cavitate valvae retenta sit enormiter pressurizata propter incrementum caliditatis, valvae sedes pressionem pressionis dimittere potest (ad latus fluminis defluxum).
7. The ball of the top entry ball valve is fixed, and the surface is ground, polished and hardened. A sliding bearing is installed between the ball and the valve stem to reduce friction and working torque.
8. LABIUM connectens inter valvulam et actuatorem cum signis ISO 5211 obtemperat, quod facilius est accommodare et permutare.
