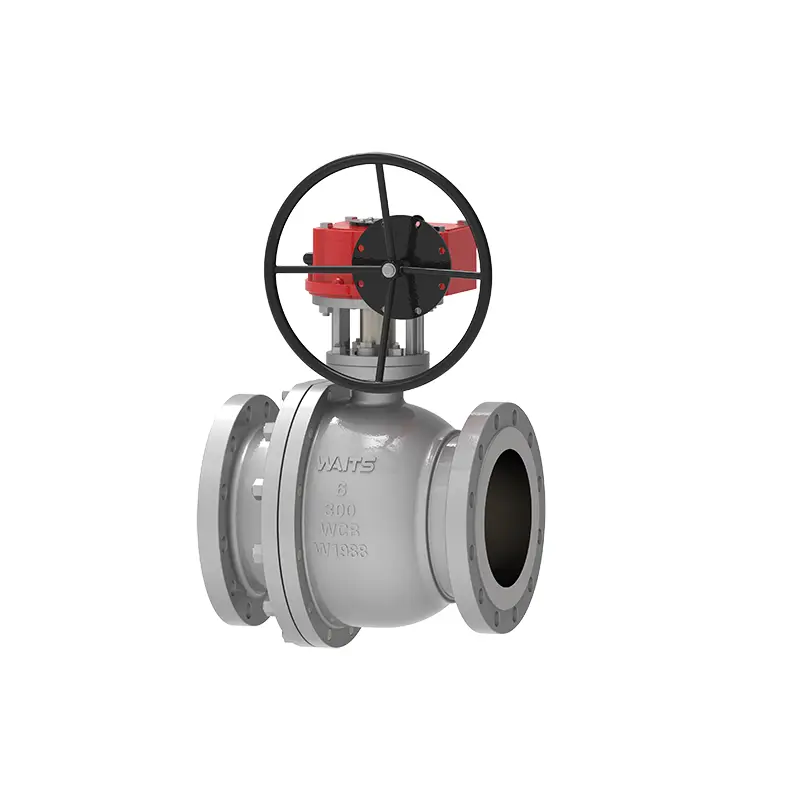

Floating Ball Valve

Sicut summus qualitas flange fluitantis pilae valvae supplementi, Waits habet opulentam industriam experientiam et clientes cum diversis servitiis nativus praebere potest ut melius conveniat necessitatibus personalibus diversarum industriarum et applicationum. Signa adoptare possumus ut API602/ ISO17292/BS5351, etc., et fabricare et accipere ea secundum signa per processum ad effectum qualitatis efficere.

Mitte Inquisitionem

depictio producti

Valvae globulus flangium fluitans designatur et fabricatur a nobis ut servitutem vitam et fidem quam maxime foveat. Hoc genus pilae valvae producti consilio requisito occurrit vexillum API 608 & API 6d in American Petroleum et vexillum Britannicum BS 5351, et obtemperat cum vexillum Americanorum Societatis Mechanicalis ASMEB16.34.

Signa exsequendam

Design signa	API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Signa Flange	ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Connexio modi	RF，RTJ,BW
Probatio et acceptatio	API598 API 6D BS12569
Longitudo structuralis	SME B16.10, BS 558, BS12982, ISO 5752
Pressura et temperatus gradus	ASME B16.34、
Ignis praesidium requisita	API6FA API607
Humilis lacus signa	ISO 15848-1, API 622
Anti- corrosio design	NACE MR 0103，NACE MR 0175

Applicationem

Magnitudo	NPS 1/2"~10" DN15~DN250
Pressura range	150LB–600LB, PN10–PN64
Temperatus range	-29℃ ~ +200℃
Applicationemem range	Tap aqua, purgamentorum, constructio, petroleum, industria chemica, cibus, medicina, textile, electricitas, fabricatio, metallurgia, ratio energiae, etc.
Coegi modus	Turbine, pneumaticum, electricum
Valvae corpus	Forgings：A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5, Monel; Castings：A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2
Ball	Sphere CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni60
Valvae firmamentum anulus sedes	Sedes sup- ring： CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni55
Valvae sedes inserta	PTFE, RPTFE, Nylon, Devlon, PEEK
Valvae caulis	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Features euismod

1. LABIUM fluitans valvae pilae designatae et productae ab Waitz adoptat valvulam labellam obsignationem cum sede bona signandi perficiendi, friction coefficiens humilis et torques parva operandi.
2. Plectrum caulis deorsum insidens est, qui impedire potest ne pressus evolare possit. In specialibus adiunctis, ut ignis, contactum metallicum cum valvae corpore formare potest, ut signationem valvae trunco curet.
3. It has a fireproof and anti-static design.
4. The handle can indicate the switch status, and the connection between the flat-headed valve stem and the handle will not be misaligned.
5. There are locking holes in the fully open and fully closed positions of the valve to prevent misoperation.
6. Est exiguum magnitudine et leve in pondere, ad crebras operationes accommodatum, apertura et occlusio velox; facile est ponere; non restringitur per directionem institutionis; parva umor resistentia, nulla tremor, et gravis strepitus.

Flange Floating Ball Valve
