Duplex Clausus et Bleed Ball Valve

Waits is able to produce and supply double block and bleed ball valves to the world market. We were founded in the United States in 1994, and established a Chinese branch in 2008. Today, our global headquarters is located in Wenzhou. Our valve production base can design and produce according to actual working conditions. This ball valve is widely used in oil field projects in the Middle East and Southeast Asia.

Mitte Inquisitionem

depictio producti

Si duplicem stipitem et globulum valvae notionis minuere vis, opus est duabus valvis in- flexis valvulae solitariae et sanguinem valvularum spirare vel fluidum inter duo elementa clausa inclusa exhaurire ut fistulam amni amni secernat. Hoc munus perfici potest cum uno duplici stipite et plectro pila minuente cum portu inter duas pilas cruentato.

Signa exsequendam

Design signa	ISO14313/API 6D, API 608, BS 5351
Signa Flange	ASME B 16.5, ASME B16.47, ASME B16.25;
Connection methods	RF, RTJ, BW
Probatio et acceptatio	API598, API 6D,
Longitudo structuralis	API 6D, ASME B16.10
Pressura et temperatus gradus	ASME B16.34、
Ignis praesidium requisita	API6FA API607
Humilis lacus signa	ISO 15848-1, API 622
Anti- corrosio design	NACE MR 0103, NACE MR 0175

Applicationem

Magnitudo	NPS1/2″~"24″ DN15~DN600
Pressura range	Class150 ~ 2500 PN10~PN420
Temperature range	；-196°C ~ +600°C
Applicationemem range	Petroleum, industria chemica, metallurgia, lux industriae, statio potentiae, constructionis aquae urbanae copia, condiciones temperaturae laboris humiles, et fistulae diuturnae ut oleum, gas et gas naturale.
Coegi modus	Turbine, pneumaticum, electricum
Valve body	Forgings：A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5, Monel; Castings：A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2
Ball	Sphere CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni60
Valvae firmamentum anulus sedes	Sedes sup- ring： CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni55
Valvae sedes inserta	PTFE, RPTFE, Nylon, Devlon, PEEK
Valvae caulis	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Features euismod

1. Salvum spatium et pondus, impensas in usum, institutionem et subsequentem sustentationem reducere valvulae duplices stipes et minuere pila
2.Minimize lacus vias
3.Improve recta structura integritatis
4.Overall amplio ratio reliability
5.Explosion-probatio/ictu-e-probationis caulis design
6.Fire-probationem et consilium anti-static
7.Independent pila caule
8.Automatic release / piston duplex effectus
9.Floating valvae sedes, e molli vel metallo cathedra

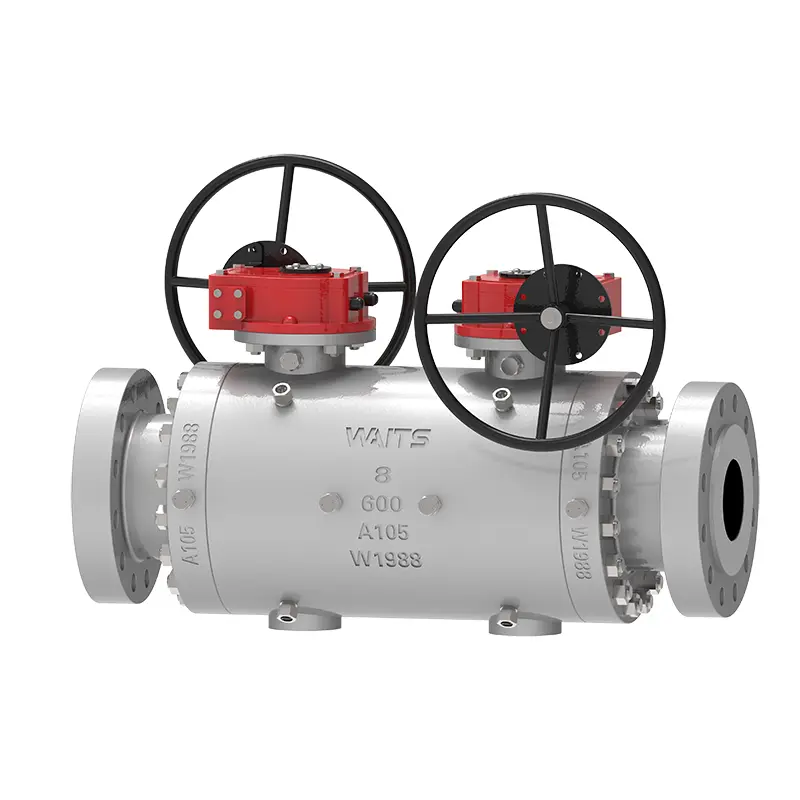

Double Block and Bleed Ball Valve
