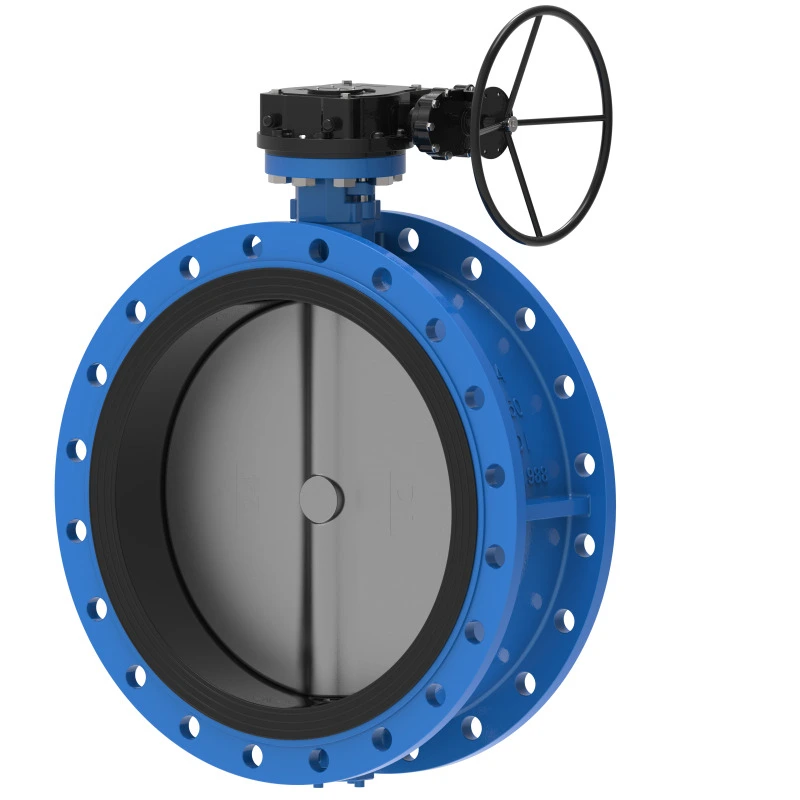

Apparatus Flange Concentrici Papilio Valve

Apparatus Flange Concentricus Papilio Valvae potest esse mos pro diversis institutionibus; sedes subsidiaria interna prohibet discos sag et lacus in inscensu verticali. Praesto usque ad DN2400 (96").

Mitte Inquisitionem

depictio producti

Magnae magnitudinis LANGIUM Concentricum Papilio Valvae specimen sunt aquae municipalis et potentiae systematis plantae refrigerationis. Resistentia humilitatis consilium efficit stabilis summus fluxus effectus. Praesto cum actu manuali, pneumatico, vel electrico actui certae signationi et efficienti, operationi dependenti.

Signa exsequendam

Design Standard	API 609, EN 593, BS 5155, GOST
Finis Standard	ANSI B16.1 CL. 125LB et B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 et PN16; AS 2129 Tabula D et E BS 10 Tabula D et E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 et PN16 .; ISO 7005 PN6, PN10 et PN16
Inspectionis & Test	API 598, IS0 5208, EN 12266-1, GOST
Facie ad faciem	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Applicationem

Operating Temperature	-45℃~150℃
Magnitudo	2"-80", DN50-DN2000
Pressura opus / CWP	16BAR 10BAR
Testa	24BAR 15BAR
Sigillum	18BAR 10BAR
Air Test	6BAR 6BAR
Operans Opera	Saburra et sentina systematis Chemical processui Desalination plantae, aggeribus EXERCITATIO, Aquam bibens Pulvis aridus, cibus et potus, gas plantae HAVC Mining industria, industria charta, tractatio Sand, Agua, Sugar industria Thermo technica aqua curatio Vastum aqua
Operator	Vectis, Apparatus, Electrica, Pneumatica, etc.
Corpus Material	Ferrum, Ductile Ferrum, Carbo Ferro, Ferro, AL-Bronze, etc.
Disc	Ferrum, Ductile Ferrum, Carbon Steel, Steel, AL-Bronze
Stem	2CR13 F304 F316 F51 F53 Monel K500
Sedes	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Naturalis Flexilis
