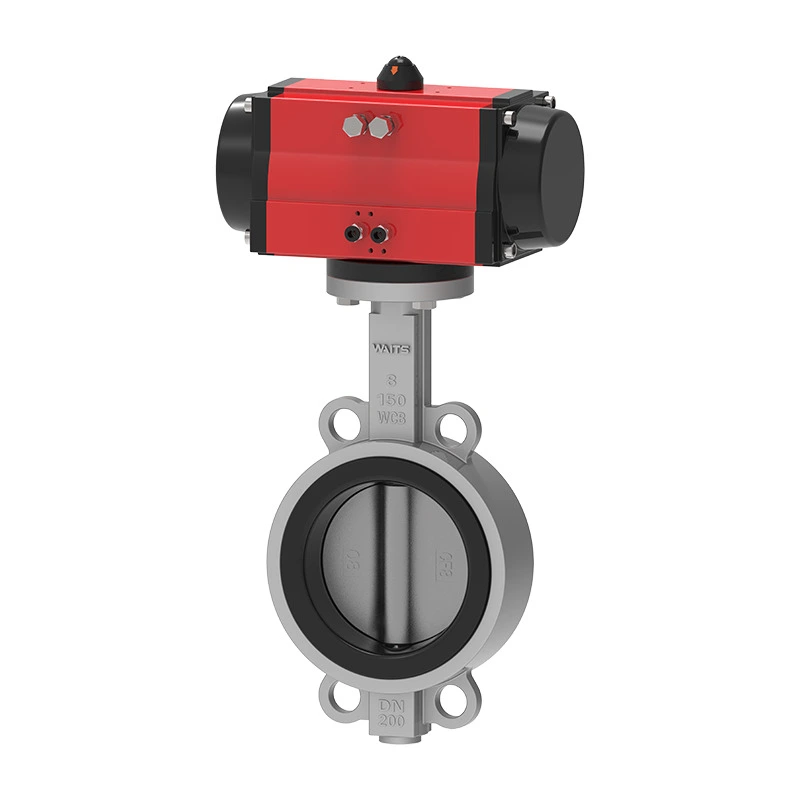

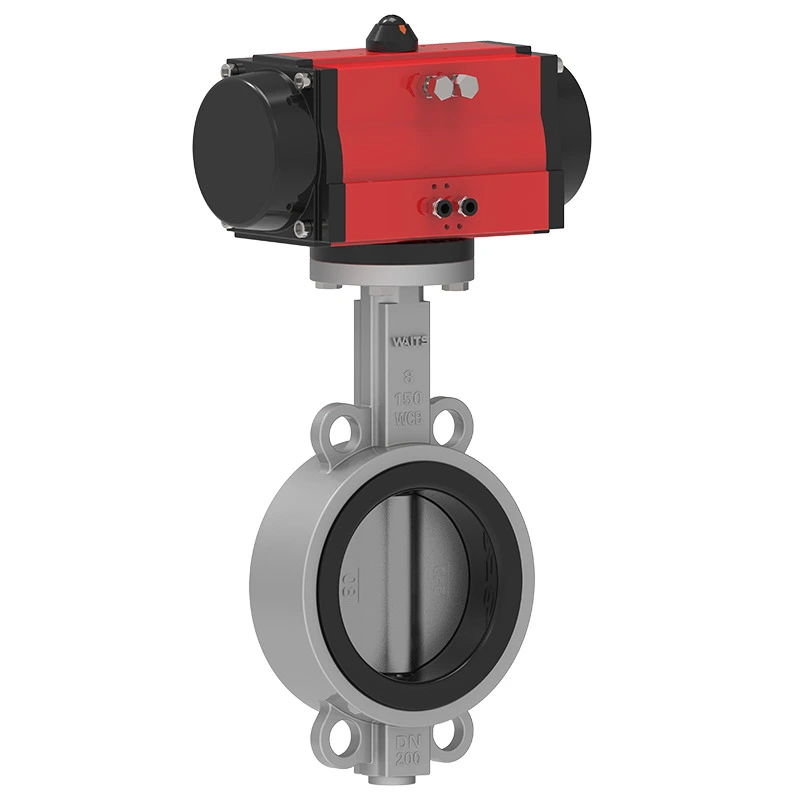

Pneumaticum Wafer Concentricum Papilio Valve

Waitz Pneumatica lagana concentrica Papilio Valvae late applicationem praebent: praecise regulantem in aqua copiam fluxum, ducatus partus moderantes, et gasi in pulvere collectionis systemata administrandi fluunt. Lorem ISO5211 summo flange pro actuator universali compatibilitas, humilis torques consilium efficit operationem lenis, consummationem energiae reductam, et efficientiam altam in diversis, condiciones postulantes.

Mitte Inquisitionem

depictio producti

Design flexibilitas:
1.Color-matched to plant coding or brand for clear pipeline identification.
2.Engineered aptare – customizable lug spacing et corporis crassitudinem pro strictis spatiis et sentinam decursibus.
3. Plena integratio pneumatica - compatibilis cum maioribus facibus pro inconsutilis automatione.

Procuratio Commoda:
1. Una-statur customization - non retrofitting, velocior traditio, gratuita inferiora.
2.Fast quotes & peritia subsidii - rectam inspectionem, colorem, et compatibilitatem praestat.
3.Reliable & corrosio-repugnans - idealis OEM systematum seu plantarum retrofits.

Signa exsequendam

Design Standard	API 609, EN 593, BS 5155, GOST
Finis Standard	ANSI B16.1 CL. 125LB et B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 et PN16; AS 2129 Tabula D et E BS 10 Tabula D et E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 et PN16 .; ISO 7005 PN6, PN10 et PN16
Inspectionis & Test	API 598, IS0 5208, EN 12266-1, GOST
Facie ad faciem	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Applicationem

Operating Temperature	-45℃~150℃
Magnitudo	2"-80", DN50-DN2000
Pressura opus / CWP	16BAR 10BAR
Testa	24BAR 15BAR
Sigillum	18BAR 10BAR
Air Test	6BAR 6BAR
Operans Opera	Saburra et sentina systematis Chemical processui Desalination plantae, aggeribus EXERCITATIO, Aquam bibens Pulvis aridus, cibus et potus, gas plantae HAVC Mining industria, industria charta, tractatio Sand, Agua, Sugar industria Thermo technica aqua curatio Vastum aqua
Operator	Vectis, Apparatus, Electrica, Pneumatica, etc.
Corpus Material	Ferrum, Ductile Ferrum, Carbo Ferro, Ferro, AL-Bronze, etc.
Disc	Ferrum, Ductile Ferrum, Carbon Steel, Steel, AL-Bronze
Stem	2CR13 F304 F316 F51 F53 Monel K500
Sedes	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Naturalis Flexilis
