China Pila valvae Fabrica, Supplier

Wits CYMBALON - TRIDIFACTUS Source ad altum qualitas valvulae. Sicut ducens CYMBALON amet, ut superbia in oblatione amplis de valvulae ad sectam diversas necessitates. Notum enim praecisione ipsum et superior qualitas nostra products range a pila valvulae ad portam valvulae. Discover: ut expectat valvae difference et sentire liberum mittere nos inquiries impetro competitive pretium.

Pila valvulae sunt valde versatile. Et patiuntur, impedire et control fluxus liquorum, vapor et vapor in pipe systems per rotating pila cum foraminis. In pila est mounted in duas valvae sedes, connectit a valvae derivantur, et operatio rotating pila fit per imperium mechanism. Dum directionem foraminis omnino perpendicularis directionem fluidi in tibia, fluidi non licet transire valvae. Celeritas fluidi pendent in angulo gyrationis pila. Sicut plug valvulae et papilionem valvulae, pila valvulae sunt etiam quarta-angle gyratorius valvulae. Non potest operandum manually vel per actuator. Simplicissima operatio est ut a clavis vel vecte et gyrari non manually per operator. Applicando torque mutatur vectis brachium XC gradus clockwise vel counterclockwise aperire vel prope valvae. Si vecte brachium est parallela tibia, quod est valvae aperta. Si vecte brachium perpendicularis ad tibia, valvae clausit.

Nostrum pila valvae potest fabricari in diversis signis secundum mos requisitis, ut API6D / ISO17292 / BS5351 et stricte sequi vexillum vestibulum et acceptatio. In oleum agro projects in Medio Oriente et Southeast Asia, multa duplex obstructionum et sanguinem pila valvulae observat valvae sunt adhuc servientes customers. Eximius ieiunium partus tempus expectat valvae sit unum ex causis cur elit eligere nobis.

View as

Bronze tres-pars NTP pila valvae

Tres-pars NTP pila valvae expectat, praecisionem de aluminium aes, rorum et pressura corrosio. Eius tres-pars consilio datas facile sustentationem, nulla, leakage, et praecisa fluxus imperium. Npp Sequelae et Multiple Actuations sectam, Marine et aqua systems.

Lege plus Mitte Inquisitionem

Bronze duo-piece NTP pila valvae

Exspectat aere duo-pars NTP pila valvae, cum durabile aluminium aes corpus ad corrosio resistentia, features duas pars et praecisione pila in nulla, leakage signa. NPP Sequelae patitur Securus Install / Act, Reliable fluida imperium in diversis ambitibus.

Lege plus Mitte Inquisitionem

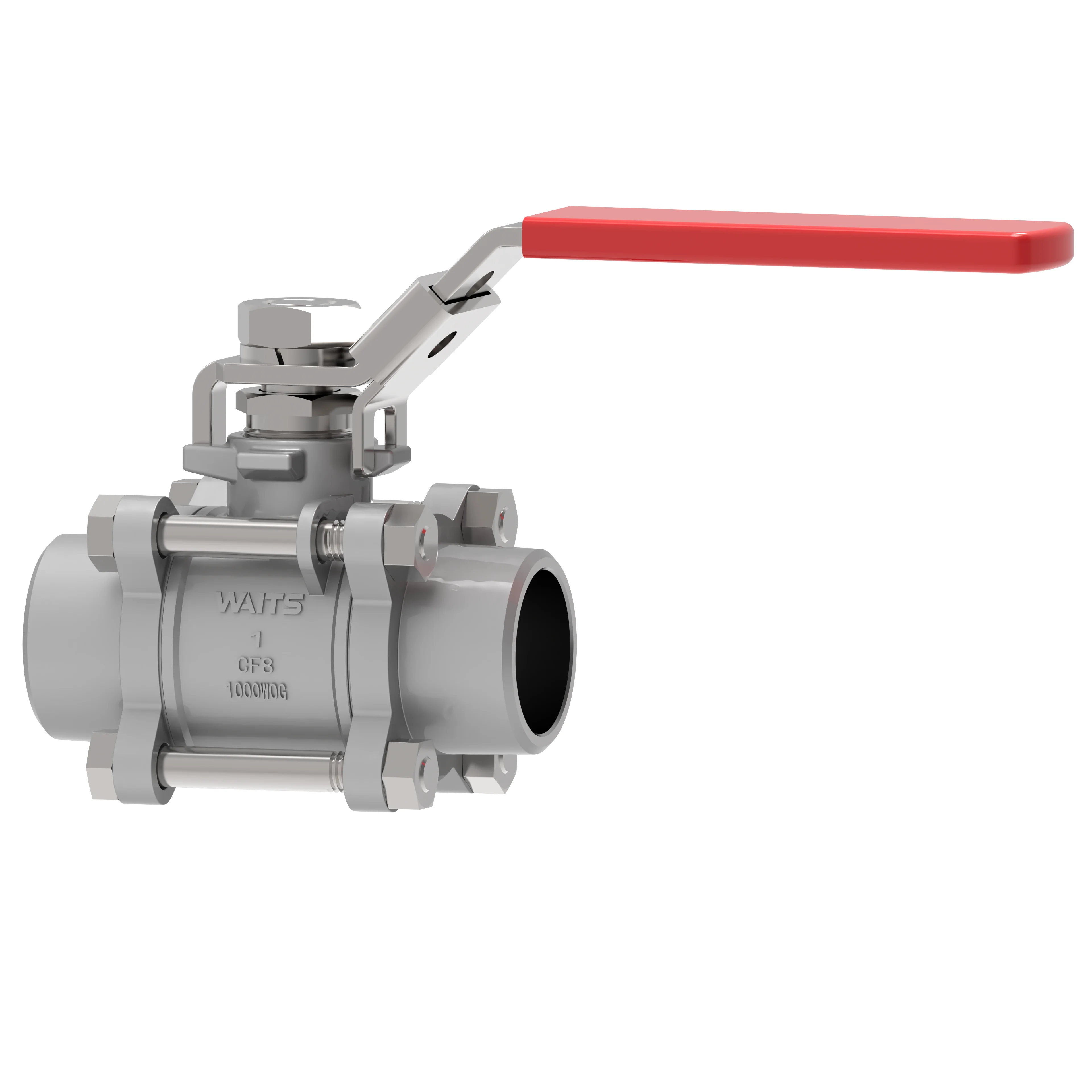

III PCs Welded pila valvae

Expectat valvae III PCs Welded pila valvae adoptat summus qualitas duplex-sede bidirectional sigillum ad consequi nulla lacus. Pila Core Conventu solet solidum vel cavas immaculatam ferro cum superficiem indurare. Valvae corpus solet de summus viribus ipsum ferro, immaculatam ferro aut muro ferro, idoneam dura operantes condiciones ut altus temperatus, princeps pressura et fortis corrosio. Exspectat valvae praebet seriem potentis et salvum valvulae.

Lege plus Mitte Inquisitionem

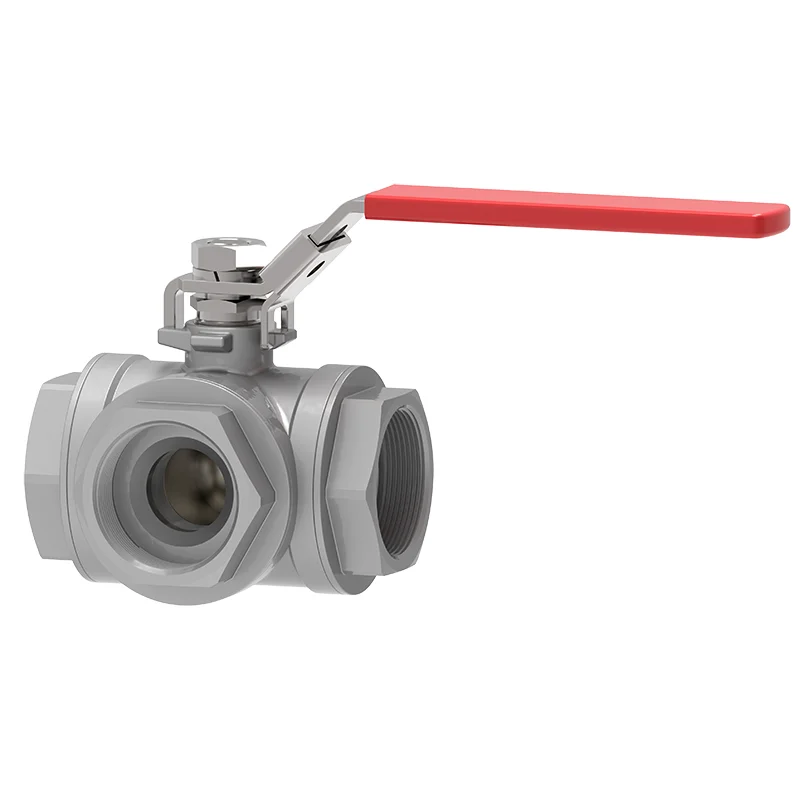

III, modo NTP pila valvae

Expectat CYMBALON III, modo NPP Pila CYMBALON VALVE aduenire Advanced mollis et Sigillum Sigillum structuram ad consequi ultra humilis leakage. Ptfe mollis sigillum potest providere stricta signantes sub humilis pressura condiciones, dum metallum durum sigillum factum est ex durabile materiae et praecisionem molere. Cum autem in altum temperatus, princeps pressura aut corrosi environment, vestri engineers potest consequi nulla lacus si utuntur nostris products.

Lege plus Mitte Inquisitionem

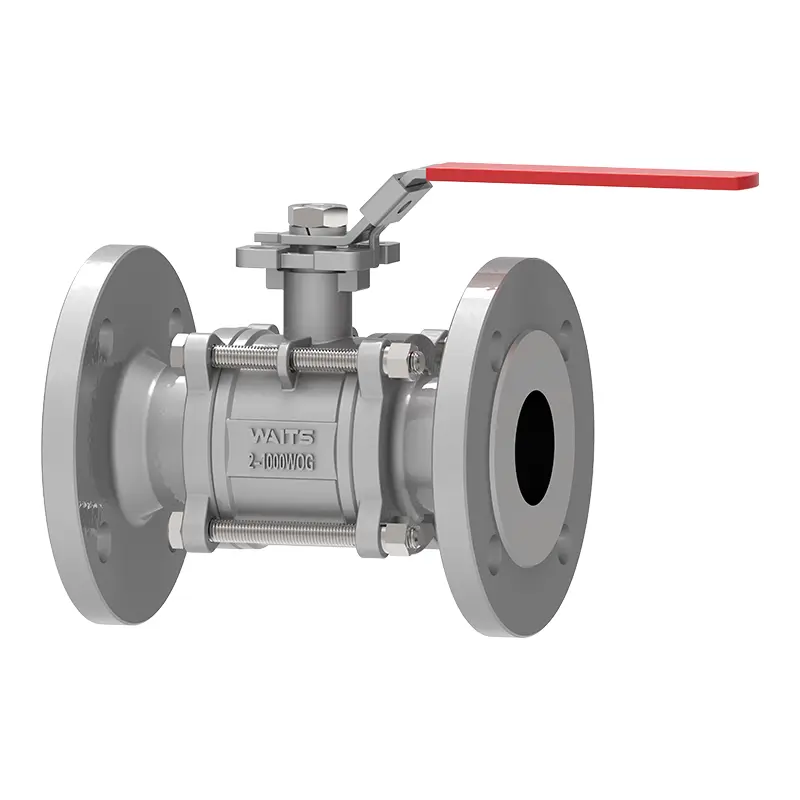

III PCs Flange Floating Pila valvae

Expectat valvae Quality III PCs LABIUM Floating Ball CYMBALON API DCVIII et ASME Signa. Periti qui saepe emere hoc valvae sciat quid haec sunt, ut adhuc volo ad introducendam illud ad novitius buyers. Nostra uber adoptat pepulerunt tres-piece valvae corpus et Ptfe valvae sedem, vecte operationem et salus munera, quae est idoneam ad reliable fluidum imperium in petrochemical et potentia industries.

Lege plus Mitte Inquisitionem

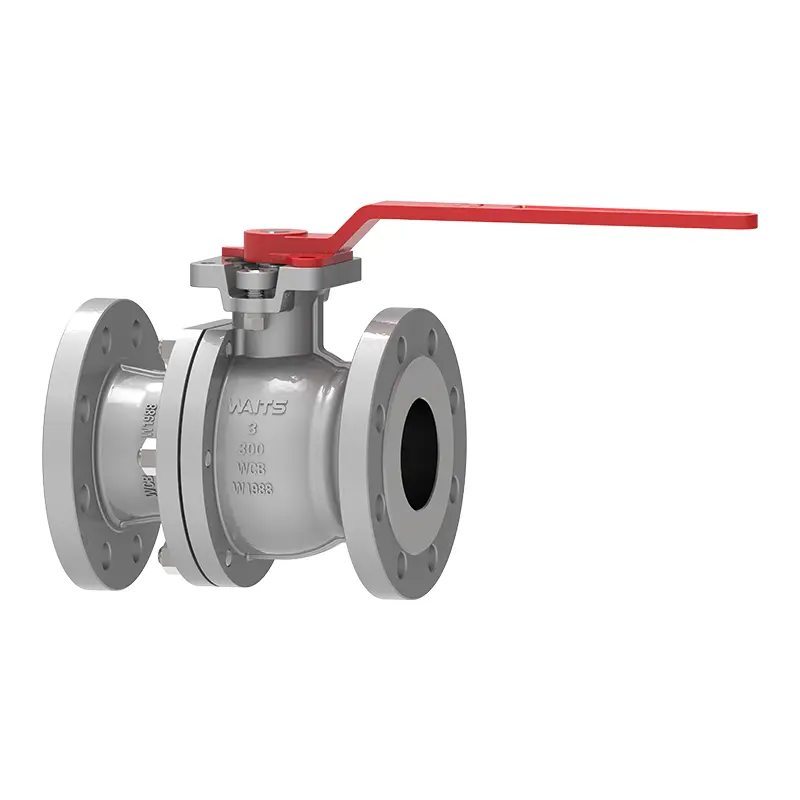

II PCs Flange Floating Pila valvae

Expectat valvae in II PCs Flante Floating Ball CYMBALON API DCVIII et ISO (XVII) CCXCII signa. Etiam adoptat vecte operationem, facile operationem, et habet salutem consilia ut anti stabilis valvae caule, idoneam petrochemical, naturalis Gas et potentia industries. Eius natantis pila structuram presses ad valvam sedem sub fluidi pressura ad consequi stricta Agricola, idoneam ad-off potestate variis pipelines.

Lege plus Mitte Inquisitionem

<1 2 3 4 >

Ball valve is a efficient valve that control the fluids flow and blockage by rotate the ball.Valves has core advantages such as simple structure, good sealing performance, and convenient operation, and the valve is widely used in industries such as petroleum, chemical engineering, power and water treatment. The working principle of ball valve made in China is to achieve the opening and cutting off of the fluid by rotating the ball with a through-hole 90° under the pressure of the medium. The characteristics of WAITS ball valve is low flow resistance, fast opening and closing, and long service life.

According to the different structural designs, ball valves are mainly divided into the following types:
Floating ball valve : The ball is pressed against the valve seat seal under the pressure of the medium, suitable for small-diameter and medium-pressure working conditions, and the durable ball valve is economical and practical.
Fixed Ball Valve : The ball of WAITS quality ball valve is supported by the upper and lower fixed shafts, suit the high pressure and sealing stable, The classy ball valve is the first choice for long-distance pipelines of petroleum and natural gas. V-ball valve : The ball has a V-Port, which can precisely regulate the flow rate, and is special suitable for high-viscosity media such as slurries and powders.
Double ball valve: The double-ball design in WAITS advanced ball valve make the double sealing safer, and is suitable for high-risk media such as liquefied natural gas (LNG).
Side-entry ball valve: The body can be disassembled from the side, facilitating maintenance, and is suitable for installation environments with limited space.
Top Entry ball valve : The top is detachable, making maintenance convenient, and does not require disassembling the entire valve, suitable for buried or elevated pipelines.

How to choose the ball valve types

Structural type	Advantages	Limitations	Typical applications
Floating ball valve	Low cost, lightweight	High pressure and large torque	Small-diameter water/gas pipelines
Fixed ball valve	High pressure stability, Bidirectional sealing	Complex structure, high price	Long-distance pipelines of petroleum and natural gam
Three-piece ball valve	Maintenance convenient	Large volume, high weight	Corrosive media in chemical industry
V-port ball valve	Precise flow regulation	Not resistant to particle wear	Flow control of slurries and powders
Three-way T-port ball valve	Multi-directional control	High flow resistance	Reaction vessel mixing system

Core Product Advantages
1. Flange Floating Ball Valve
It ensures excellent sealing performance with a precisely machined floating ball structure. The body is available in multiple grades to meet the requirements of different media. The working pressure can reach PN40, and the applicable temperature range is from -29°C to 200°C. Typical applications: urban water supply and drainage, food processing, and pharmaceutical industries.
2. Fixed Ball Valve
Full bore design of Newest Ball Valve with a flow resistance coefficient as low as 0.05. Double piston effect valve seat ensures reliable sealing under high-pressure conditions. Complies with API 6D standards, with the highest pressure rating up to ASME 2500#. Typical applications: long-distance pipelines, LNG receiving stations, and refining and chemical plants.
3. Two-Piece Welded Ball Valve
Full welded body structure of Advanced Ball Valve for zero leakage. Buried design with an extended valve stem for underground operation. Certified by ISO 15848 micro-leakage. Typical applications: urban gas pipelines and chemical parks.

Differentiated Service System
1. Agile Response Mechanism
Professional customer service team provides 7×24-hour technical consultation.
Standard product quotation response time < 4 hours.
Emergency order processing cycle can be shortened to 72 hours.
2. Full Lifecycle Service
Pre-sale stage: Provide fluid flow analysis and valve selection consultation.
Sale stage: Offer installation guidance and on-site commissioning services.
After-sale stage: Provide maintenance and repair services, as well as spare parts supply.
3. Customized Solutions
Special materials (such as Inconel, Hastelloy) valves can be provided
Customization for non-standard sizes and special connection methods is supported
Quality Assurance System
Obtained multiple certifications including API 6D, CE, ISO 9001, etc.
100% factory pressure testing, using fully automatic pressure testing equipment
Traceability system for key components to ensure quality consistency

WAITS Valves adhere to the business philosophy of "Customer-Centricity", through continuous technological innovation and service optimization, creating maximum value for customers. We look forward to developing together with global partners and providing safer and more efficient solutions in the field of industrial fluid control.
If you need to obtain more product information or technical support, please feel free to contact our professional team at any time.

Pro fabrica et supplemento in Sinis, officinam habemus nostram. Si quaesitis qualitas products cum parvo pretio, pete nobis.
