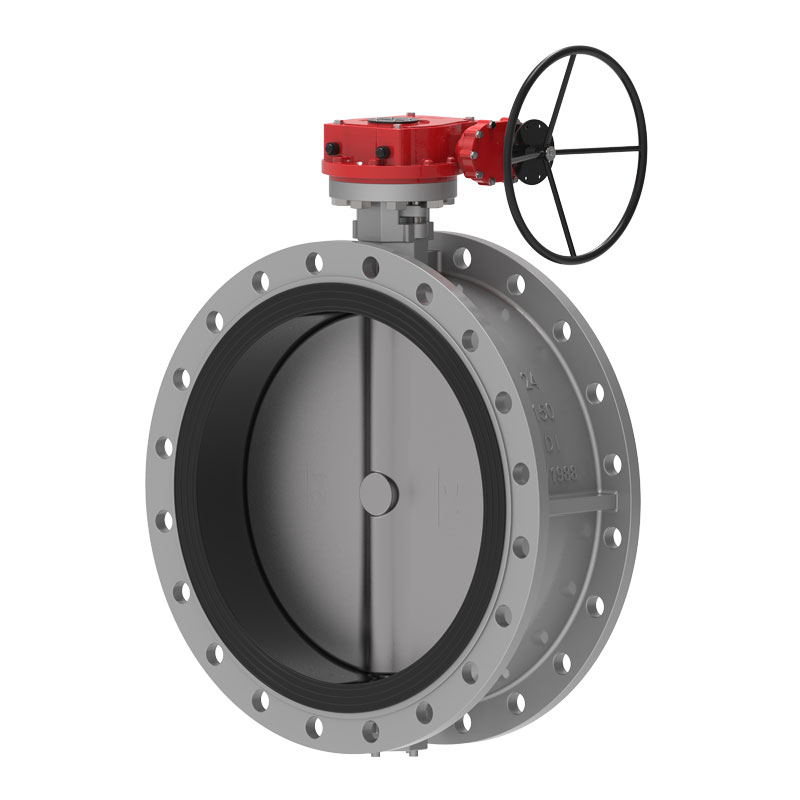

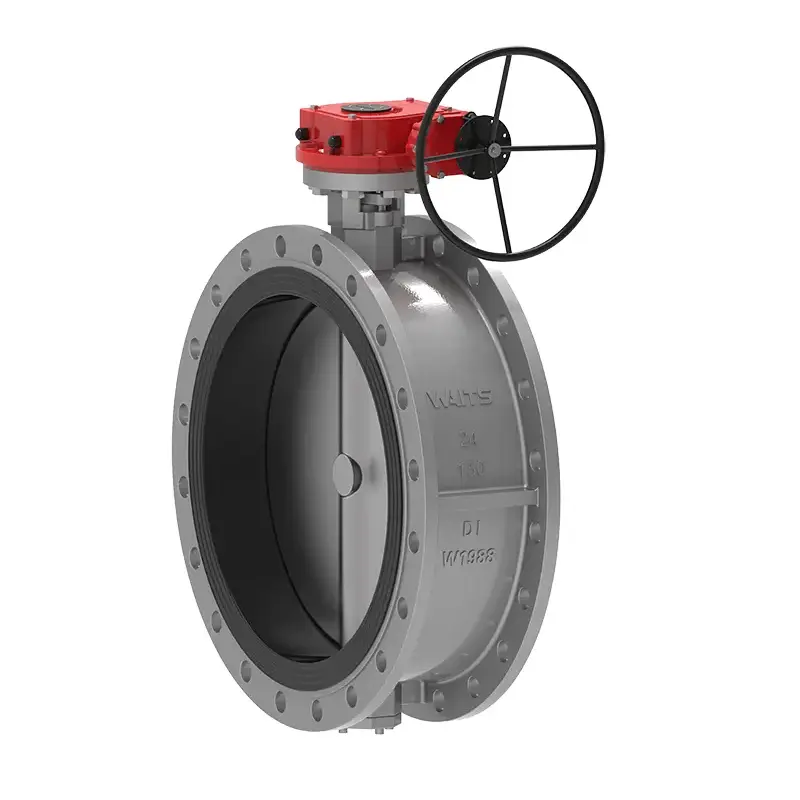

Soft Sedet Duplex Flange Papilio Valve

Waitz est mollis sedet duplex LABIUM papilio valvae opificem et elit. Primum in US constitutum est et postea productio basis in Sinis constituta est. Praetorium globalis in Wenzhou situm est. Diues industriae usus habemus et eligimus materias rudis naturales summus qualitas ad certificationem cibi gradus consequendam. Ad cibum pipelines adhiberi possunt, ut constructio lactis fonte plantarum pipeline et desalination plantarum marinarum.

Mitte Inquisitionem

depictio producti

Quisque mollis sedet duplex plectrum papilionis LABIUM Duplex Waitz has notas sequentes:
1. High elasticitates valvae sede rubber
EPDM valvae sedis Flexilis contenti L% est, et probatum est plus quam 10,000 vicibus aperturae simulatae et sine ultrices claudendi.
Litoris duritia/gradus 72±3,200% accentus distrahens/Mpa≥6, robur distrahens Mpa≥15, elongatio intermissum/%≥350, deformatio permanentis intermissum/%≦10, lacrima vires/KN.m-1≥35; compressio deformatio permanentis (70℃*22h, compressio rate 25%)/%≦20 Sedes valvae lateris latae) Prae sede valvae laterali angusto comparatae, sedes valvae lateris latae superficiem contactum latiorem habet cum flange pipeline, diametro circiter 20 mm, et melioris institutionis obsignatione perficiendi.
2. The butterfly plate and valve shaft are connected without pins, which can completely avoid leakage and corrosion caused by installing pins. The valve shaft is easy to disassemble and the valve seat is easy to replace.
3. The valve body is equipped with an anti-flying device, which is better and safer to use in pipelines.

Signa exsequendam

Design Standard	API 609, EN 593, BS 5155, GOST
Finis Standard	ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 et PN16 .; AS 2129 Tabula D et E BS 10 Tabula D et E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 et PN16 ISO 7005 PN6, PN10 et PN16
Inspectionis & Test	API 598, IS0 5208, EN 12266-1, GOST
Facie ad faciem	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Applicationem

Temperature operating	-45℃~150℃
Magnitudo	2"-80", DN50-DN2000
Pressura opus / CWP	16BAR 10BAR
Testa	24BAR 15BAR
Sigillum	18BAR 10BAR
Air Test	6BAR 6BAR
Operans Opera	Saburra et sentina systematis Chemical processui Desalination plantae, aggeribus EXERCITATIO, Aquam bibens Pulvis aridus, cibus et potus, gas plantae HAVC Mining industria, industria charta, tractatio Sand, Agua, Sugar industria Thermo technica aqua curatio Vastum aqua
Operator	Vectis, Apparatus, Electrica, Pneumatica, etc.
Corpus Material	Ferrum, Ductile Ferrum, Carbo Steel, Steel Immaculatus, AL-Bronze, etc.
Disc	Ferrum, Ductile Ferrum, Carbon Steel, Steel, AL-Bronze
Stem	2CR13 F304 F316 F51 F53 Monel K500
Sedes	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Naturalis Flexilis
