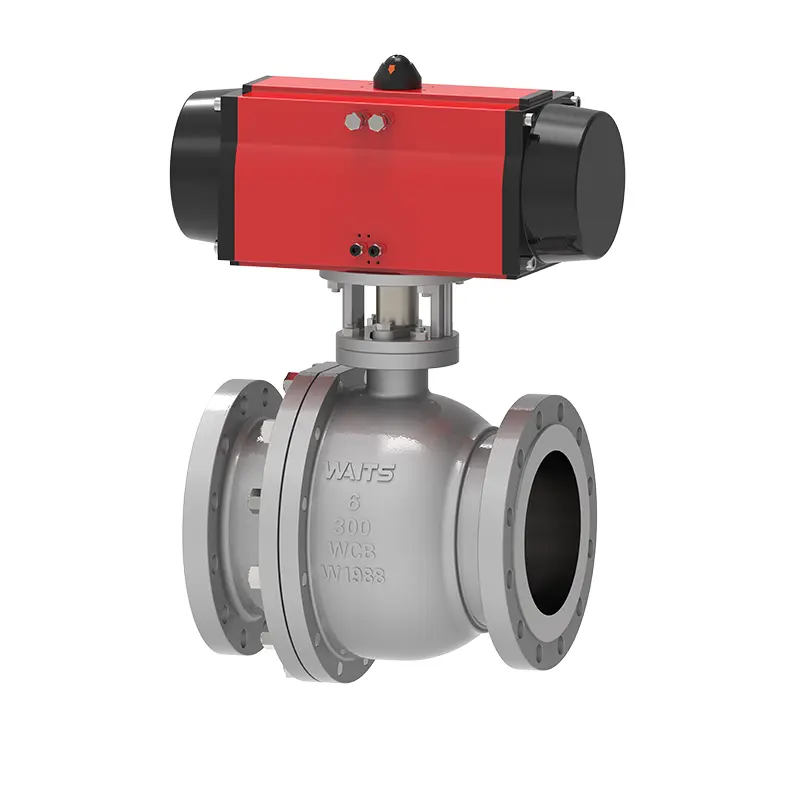

Pneumatica Floating Ball Valve

Valvae pilae pneumaticae fluitantis est valvae pneumaticae producto Waitz, magna opera, vilis pretii officina, stabilis copia et servitus et subsidia comprehensiva. Necessitates diversorum clientium in valvae fabricando plene consideramus, et API602/ISO17292/BS5351 aliaque signa capere possumus, et fabricare et secundum signa per processum efficere ut producti qualitatem accipiamus.

Mitte Inquisitionem

depictio producti

Pneumatica fluitans valvae pilae consilio requisitis API 608 & API 6d et vexillum API 608 Institutum Petroleum Britannicum 5351 obtemperat, et cum vexillum Americanorum Societatis Mechanicalium Engineering ASMEB16.34 obtemperat. Stricte secundum necessitates industriae conficitur et certas et durabiles solutiones valvae clientium in mercato globali praebet.

Signa exsequendam

Design signa	API 6D， API 608，ASME B16.34，ISO 17292，BS5351，
Signa Flange	ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627
Connexio modi	RF，RTJ,BW
Probatio et acceptatio	API598 API 6D BS12569
Longitudo structuralis	SME B16.10, BS 558, BS12982, ISO 5752
Pressura et temperatus gradus	ASME B16.34、
Ignis praesidium requisita	API6FA API607
Humilis lacus signa	ISO 15848-1, API 622
Anti- corrosio design	NACE MR 0103，NACE MR 0175

Applicationem

Magnitudo	NPS 1/2"~10" DN15~DN250
Pressura range	150LB-600LB, PN10-PN64
Temperatus range	-29℃ ~ +200℃
Applicationemem range	Tap aqua, purgamentorum, constructio, petroleum, industria chemica, cibus, medicina, textile, electricitas, fabricatio, metallurgia, ratio energiae, etc.
Coegi modus	Turbine, pneumaticum, electricum
Valvae corpus	Forgings：A105, A182 F304, F304L, F316, F316L, F51, F53, A350 LF2, LF3, LF5, Monel; Castings：A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2
Ball	Sphere： CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni60
Valvae firmamentum anulus sedes	Sedes sup- ring： CS+ENP, A182 F304, F304L, F316, F316L, F51; F53, CS+TCC, CS+Ni55
Valvae sedes inserta	PTFE, RPTFE, Nylon, Devlon, PEEK
Valvae caulis	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Features euismod

1. The valve seat of the pneumatic floating ball valve is a lip seal with good performance, low friction coefficient and small operating torque.

2. Valvae erectae caulis solum pressus evolare possunt. Praeterea, si specialis condicio talis est ut ignis, metalli contactum cum valvae corpore formare potest ut signatio specialibus circumstantiis non afficiatur.

3. Plectrum ad fireproof et anti-staticam destinatur.

4. Manubrium munus habet indicandi status transitum, et valvae plani caput et manubrium non misaligned.

5. Ad impediendam misoperationem, positiones valvae plene apertae et plene clausae densis foraminibus instructae sunt, quae tutior et commodior est.

6. The overall size of the valve is relatively small and the weight is relatively light. It can be used for frequent operation and open and close quickly. It is not restricted by direction during installation and use, with small fluid resistance, no vibration and low noise.

Pneumatic Floating Ball Valve
