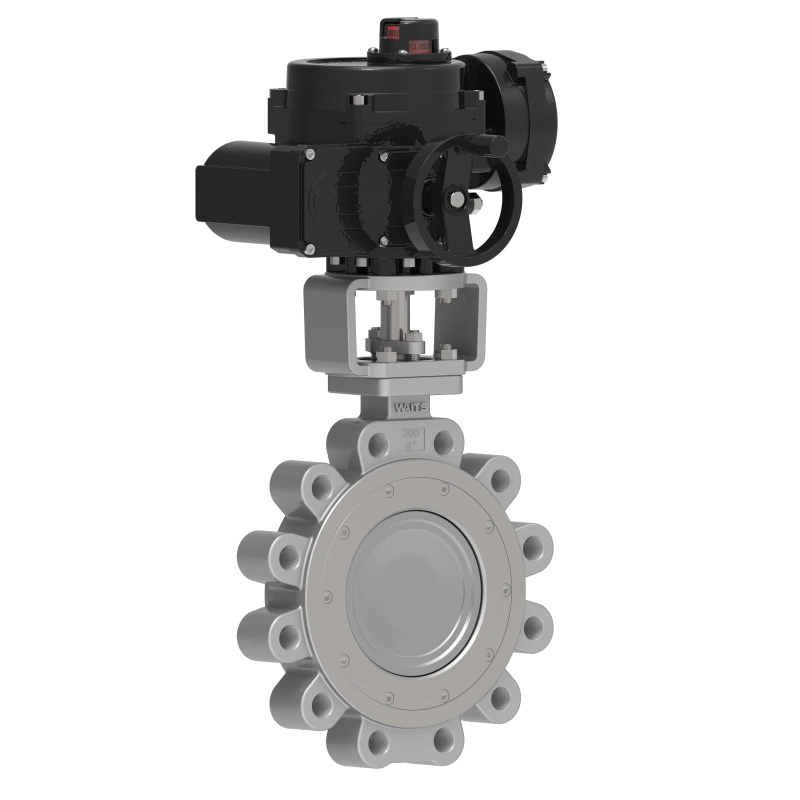

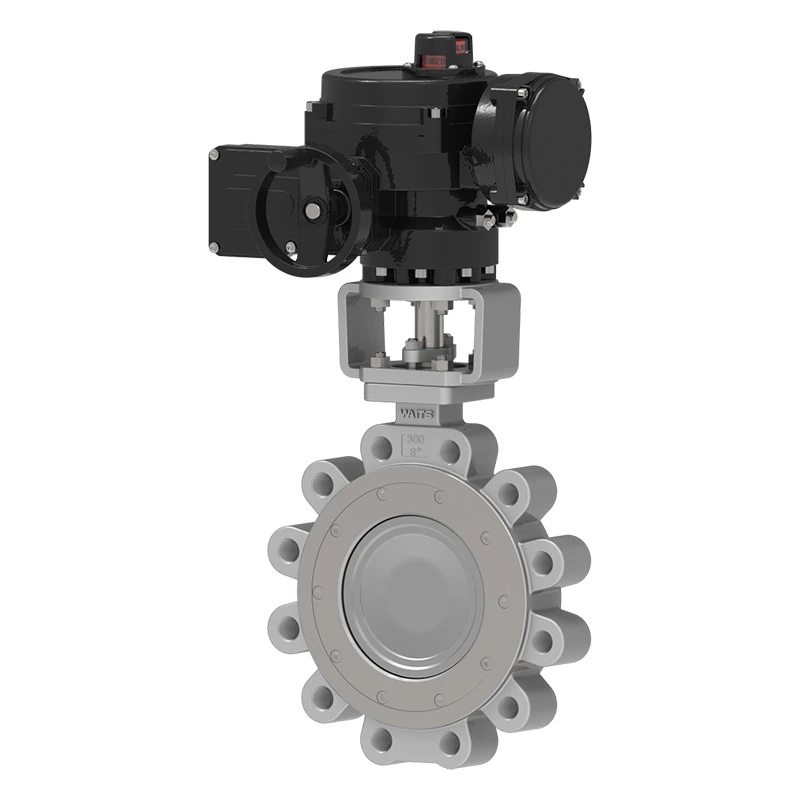

Electric Lug High Performance Butterfly Valve

Signa exsequendam Design StandardAPI 609, EN 593, GOSTFinis StandardANSI B16.1 CL. 125LB et B16.5 CL. 150LBDIN 2501 PN6/PN10/PN16/,EN 1092 PN6, PN10 et PN16;AS 2129 Tabula D et E BS 10 Tabula D et EMSS SP44 CL. 150LBAWWA C207 150LBISO 2531 PN6, PN10 et PN16 .;ISO 7005 PN6, PN10 et PN16RFInspectionis......

Mitte Inquisitionem

depictio producti

Signa exsequendam

Design Standard	API 609, EN 593, GOST
Finis Standard	ANSI B16.1 CL. 125LB et B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 et PN16; AS 2129 Tabula D et E BS 10 Tabula D et E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 et PN16 .; ISO 7005 PN6, PN10 et PN16
	RF
Inspectionis & Test	API 598, EN 12266-1, GOST
Facie ad faciem	API 609, EN 558, ASME B16.10, GOST
Top Flange	ISO 5211

Applicationem

Magnitudo	3"-80", DN80-DN2000
Pressura Rating	Classis 150-600, PN16-PN40
Operating Temperature	Sedes mollis: -29~200℃, Sedes Metallica: -29~450℃
Coegi modus	Turbine, pneumaticum, electricum
Operans Opera	Saburra et sentina systematis Chemical processui Desalination plantae, EXERCITATIO aggeribus, potus aquae Pulvis aridus, cibus et potus, Gas plantae HAVC Mining industria, charta industria, Arena pertractatio, Agua, Saccharum industriam Thermo technica aqua curatio Vastum aqua
Operator	Vectis, Apparatus, Electrica, Pneumatica, etc.
Corpus Material	Carbon Steel, Diver, Duplex Steel, Alloy Steel, Monel, AI Bronze, etc.
DISC	Ferrum Ductile Ferrum Carbon Steel Steel AL-Bronze
STEM	2CR13 F304 F316 F51 F53 Monel K500
SEDES	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Naturalis Flexilis

Commodo euismod

1. Longa servitus vita: Valvula specialiter destinatur ad efficaciter tuendam valvae sedem anulum ab indumento et exesa.
2. Reliability: Duplex consilium eccentricum efficit ut meliorem obsignationem effectus et torques humilis.
3. Securus repositum: Plectrum sedes et sarcina cito reparari ope ornamenti reparationis possunt.
4. Securus sustentationem: Materia resistentiae corrosionis bonam habet, nec tempus, lubricationem et sustentationem requiruntur.
5. Pressura bidirectionalis obsignatio, nulla directio restrictiones durante institutione influunt.
