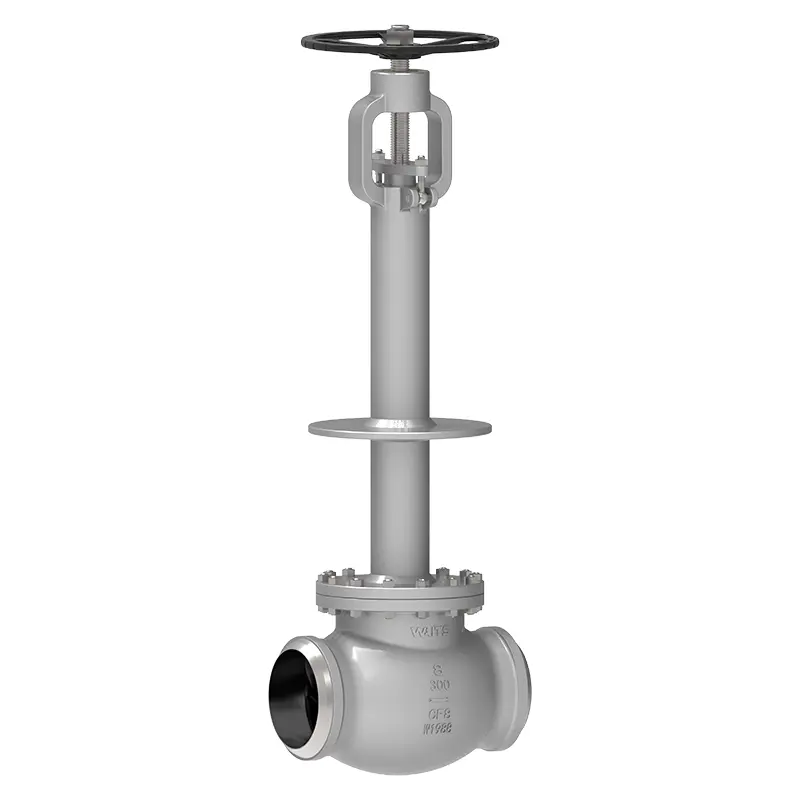

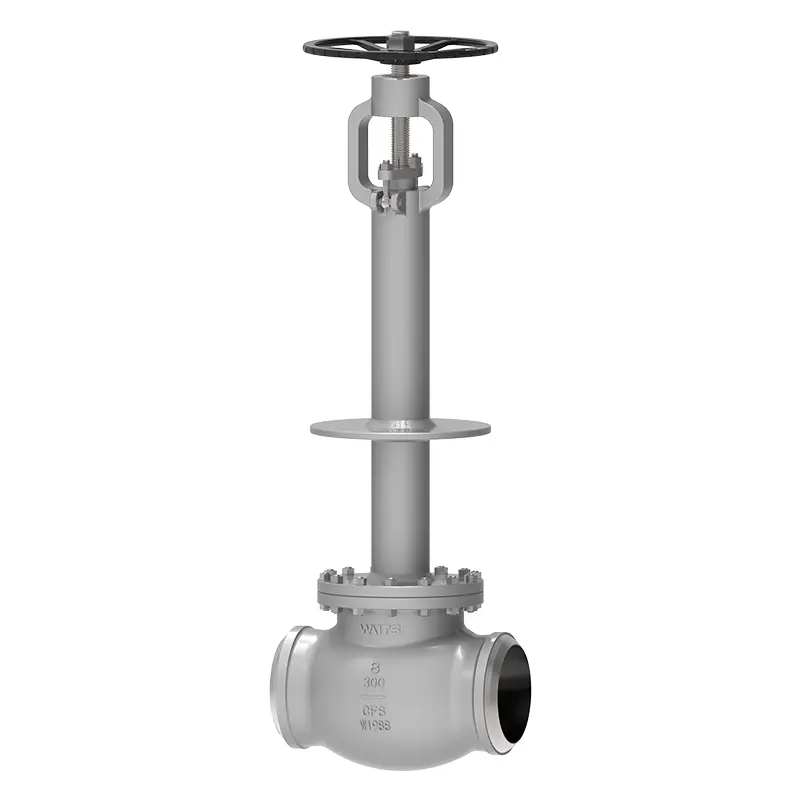

Croogenic Globe Valve

Waits has 30 years of experience in the production and manufacture of cryogenic globe valves. We were originally established in the United States in 1994 and entered China in 2008, with production bases in Tianjin and Wenzhou. The cryogenic globe valve is one of our most popular products, designed for arctic temperature applications and can handle complex working conditions.

Mitte Inquisitionem

depictio producti

Valvae globi cryogenici ordinantur applicationes ad temperaturas valde humiles, saepe inventas in industriis tractandis gasi naturalibus liquefactis (LNG), liquidis nitrogenis et aliis liquoribus cryogenicis.
Haec valvula notat mitram extensam ad insulationem propriam et caulem a frigore prohibendum. Totum ex ferro incorrupto et aliis materiis cryogenicis factis, firmitatem et lenis operationem efficit etiam in temperaturae tam demissio quam -196°C.
Valvae globi cryogenici etiam praecise iugulares capacitates et signandi mechanismum notant, quae necessaria sunt ad tuendam potestatem et salutem in ambitibus cryogenicos exigendis. Exspectat instat qualitatem ut eius prioritatem supremam, dum etiam tibi offert auctor Morbi cursus sapien.

Signa exsequendam

Design signa	API 600, API 602, BS 6364, ASME B16.34, MESC SPE 77/200, SP-134 MSS.
Signa Flange	ASME B16.10, ASME B16.25, ASME B16.5
Connexio modi	RF, RTJ, BW
Probatio et acceptatio	API 598/BS 6364, MESC SPE 77/200, SP-134 . MSS
Longitudo structuralis	ASME B16.10;
Pressura et temperatus ratings	ASME B16.34、
Fireproof test	API607, API6FA
Humilis lacus signa	ISO 15848-1, API 622
Anti- corrosio design	NACE MR 0103, NACE MR 0175

Applicationem

Size	NPS 2″~ NPS 24″ DN50~ DN600
Pressura range	CL150~ CL1500 PN10~ PN250
Temperatus range	-196°C ~ +150°C
Applicationemem range	Maxime usus est in ethylene, apparatu gasi naturali liquefacto, gas LPG naturale, LNG piscinas repositas recipiens bases et stationes satellites, apparatum separationis aeris, apparatum separationis gasi petrochemical cauda, liquidum oxygenium, liquidum hydrogenium, nitrogenium liquidum, argon liquidum
Drive mode	Turbine, pneumaticum, electricum
Valvae corpus / valvae operimentum	A182 F304/F304L/F316/F316L/CF3/CF3M/LF2/LCB/LF3/LCC
Valvae laminam / sede valvae	F316/F304+HF
Valvae caulis	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Aeris Alloy
stipare	Graphitae flexibiles, graphitae asbesto stipare, polytetrafluoroethylene...

Performance Features

1. Partes valvae, in contactu cum medio, stricte cryogenice tractantur secundum exigentias specificationis ante finitionem, et sustinere possunt expansionem et contractionem ex mutationibus calidis causatis, et structura valvae sedis non perpetuo deformata erit. temperatura mutatur;
2. The cryogenic globe valve adopts a long-necked bonnet structure that can protect the stuffing box;
3. Portae structurae quae certae obsignationis respectu temperaturae mutationum servare potest, adhibita est;
4. In sede superiore signatio chromi-tungsten carbidi compages iuncta est;
5. Valvae sedes et portae superficies signantes in chromi-tungsten structura carbida iuncta sunt;
6. Pressura subsidii foraminis structura adhibetur, ne abnormes pressionis in media cavitate oriantur, et positio pressionis foraminis in structura valvae subsidio dependet;
7. Superficies caulis valvae nitritur et obduratur, ne superficies exasperat in aperiendo et claudendo processu valvae globi cryogenici, ne effectus afficiat;
8. Sarcina seligi potest ut humilis ultrices sarcina secundum usorum requisita ut lacus valvae ad sarcinas requisita tutelae environmental occurrat. Praeterea manicas glutino praebere possumus secundum requisita utentis.

Cryogenic Globe Valve
